The Zeiss Stemi 508 stereo microscope: microscope adapters for digital cameras (DLSR and system cameras)
The highest levels of digital photographic documentation can be achieved using state-of-the-art camera technology, which makes even the smallest details visible! Our LM digital adapters allow you to attach all current DSLR and system cameras to the Zeiss Stemi 508 quickly and easily – a combination that delivers maximum image quality.
The Zeiss Stemi 508 is a Greenough-type stereo microscope that supports transmitted and incident light techniques (bright field, dark field, polarisation, oblique illumination). Zeiss designed the microscope for heavy workloads, and it is suitable for almost any observation task – from developmental biology to art restoration. The instrument’s 35° viewing angle offers optimum ergonomic support, and its two beam paths enable three-dimensional observation through the eyepieces. The maximum field number is 23, and the magnification range varies from 0.63x to 5x in 10 stages. The 8:1 zoom capability facilitates the examination of details at up to 50x magnification.
Customers can choose between three versions of this microscope:
Our LM digital adapters with planachromatic optics will allow almost any type camera to be attached to either version (selection between the three microscopes is generally a matter of budget). Modern DSLR and system cameras provide a wide range of functions, e.g. they are controlable from PC/mac. Guideline for choosing a digital camera for microscopy.
The apochromatic zoom optics in the Stemi 508 enable visualisation of objects in fields of view up to 122 mm. A range of apochromatic front optics and eyepieces are available, making it possible to reach any magnification between 2x and 250x.
Illumination is provided by LED sources (spot, double-spot gooseneck or segmentable ring light illuminators), and a variety of cold light sources are also available. Other options include transmitted light units and polarisation equipment for reflected and transmitted light.
The Stemi 508 can be rounded out by selecting from a comprehensive range of stands and other accessories.

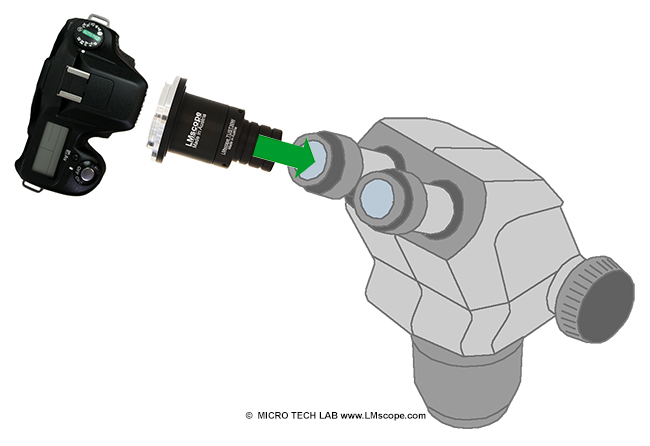

Fitting the microscope to digital single-lens reflex (DSLR), system or C-mount cameras is easy with our LM digital SLR adapters, which feature a plan achromatic optical system. Our products make it possible to capture top-quality microscope images. To help you select the adapter that is right for your camera, we have set up an online configurator on our website. You can also email us – ideally with attached photographs of your microscope.
Modern DSLR and system cameras offer the latest technology and are generally very well suited for microscopy applications. Most of them can be controlled remotely via PC/Mac. Because of their high sales volumes, they offer an excellent price/performance ratio compared to special-purpose microscope cameras.
Features of top DSLR and system cameras:
- Large, powerful full-frame sensors (36 x 24 mm)
- Sensor resolution of 50 megapixels
- High light sensitivity (ISO 100,000+)
- Extensive dynamic range (up to 14 aperture stops/f-stops)
- Short exposure times (1/8000 second):
- Full/Ultra HD (4k) video function
- Live video capture on external monitors in ultra HD quality
In most cases, these cameras are significantly more powerful than microscope cameras with smaller sensors (1/2" or 2/3"). On our website you will find our current camera recommendations and a camera ranking which is specifically tailored to microscopy applications.
Nikon D850 / Sony Alpha 7III / Sony Alpha 9 / Nikon D5 / Sony Alpha 7S II / Sony Alpha 7R II / Sony Alpha 7R III / Sony Alpha 7S / Canon EOS 5D Mark IV / Nikon D750 / Canon EOS 6D Mark II / Sony Alpha 6300 / Sony Alpha 6500 / Nikon D500 / Canon EOS 1D X / Nikon D810 / Nikon D4s / Nikon D800 / Nikon D800E / Nikon D4 / Nikon Df / Nikon D610 / Nikon D600 / Canon EOS 6D / Canon EOS 5DS R ( without low-pass filter) / Olympus OM-D E-M1 Mark II / Canon EOS 80D / Canon EOS 5DS / Sony Alpha 77 II / Canon EOS 70D / Nikon D7200 / Canon EOS 200D / Canon EOS 800D / Rebel T7i / Canon EOS 77D / Canon EOS 5D Mark III / Canon EOS 60D / Sony Alpha 7R / Sony Alpha 7 / Nikon DS-Qi2 (Microscope Camera) / Nikon D3x / Olympus OM-D E-M1 / Nikon D3S / Canon EOS 750D / Rebel T6i / Canon EOS 760D / Rebel T6s / Canon EOS 5D Mark II / Nikon D7100 / Pentax K-5 / Canon EOS 1D Mark IV / Nikon D7000 / Canon EOS 7D Mark II / Canon EOS 600D / Rebel T3i / Canon EOS 650D / Rebel T4i / Canon EOS 700D / Rebel T5i / Canon EOS 2000D / Rebel T7 / Canon EOS 7D / Canon EOS 550D / Rebel T2i / Kiss X4 Digital / Canon EOS 1300D / EOS Rebel T6 / Canon EOS 4000D / Canon EOS 100D / Nikon DS-Ri2 (Microscope Camera) / Canon EOS 50D / Canon EOS 1200D / EOS Rebel T5 / EOS Kiss X70 / Canon EOS 1100D / Rebel T3 / Olympus E-5 / Panasonic Lumix DMC-GH4 / Canon EOS 1D Mark III / Canon EOS 40D / Canon EOS 60Da for astrophotography / Sony SLT-A99 / Sony Alpha 7II / Pentax K-3 II / Olympus E-3 / Olympus E-30 / Olympus E-620 / Sony Alpha 6000 / Pentax K-500 / Canon EOS M100 / Canon EOS M6 / Nikon D700 / Nikon D3 / Canon EOS M5 / Sony Alpha 77V / Canon EOS 1000D / Digital Rebel XS / Sony Alpha 580 / Sony Alpha 5100 / Canon EOS 1Ds Mark III / Sony Alpha 5000 / Pentax K-S2 / Pentax K-r / Sony Alpha 55 / Olympus Pen E-PL7 / Olympus OM-D E-M5 / Olympus OM-D E-M10 / Panasonic Lumix DMC-GX7 / Pentax K-5 II / Pentax K-5 IIs / Pentax K-3 / Sony Alpha 33 / Nikon D5500 / Nikon D5200 / Nikon D5300 /
