How well suited are the Nikon SMZ745 and SMZ745T stereomicroscopes for photomicroscopy?

We were very impressed by the photomicroscopy possibilities offered by the Nikon SMZ1500, and so we wanted to take a closer look at its little brothers, the Nikon SMZ745 and SMZ745T. In terms of price, the two options differ greatly, and for this reason we were curious to see whether or not this would also have an impact on the photographic results.

 Nikon SMZ745

The Nikon SMZ745 is a well-made, very light (6.7 kg) stereomicroscope which, as an option, is also available with a C-mount phototube (SMZ745T). It features a long working distance (at a magnification of 7.5x the distance is a little over 100 mm) so there is sufficient room for illumination. The optical quality is very good; even at maximum zoom, only slight chromatic aberrations are visible (colour fringing).

It would be nice if, like the SMZ1500, the microscope had an aperture control (aperture diaphragm) for each optical path so that the depth of field could be increased. When special lighting configurations are used (such as strong LED lighting, a flash or side lighting, etc.) this function offers greater flexibility.

We attached different cameras to the microscope in order to assess the optical quality. The SMZ745T comes with a C-mount port (exterior thread 25.4 mm) with an integrated reduction lens (factor 0.55x).

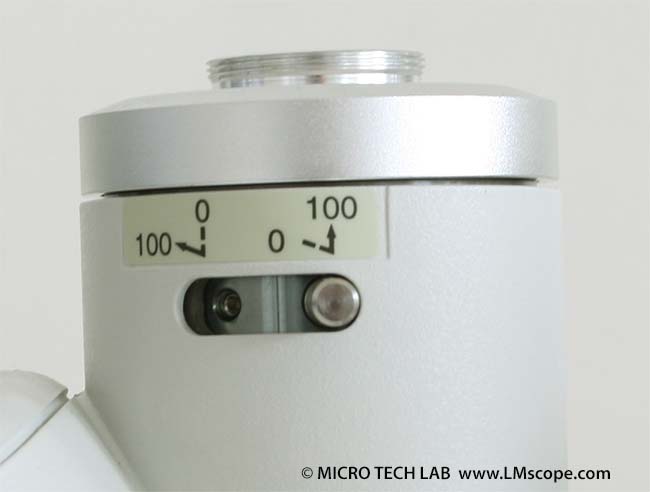

 Nikon SMZ745T c-mount port

This is ideal for using C-mount cameras with 2/3" or 1/2" sensors.

Nikon SMZ745T and USB camera

The optical quality is good at low zoom levels and then decreases continuously. The SMZ745 does not stand up in direct comparison with its big brother, the SMZ1500. The differences are too great, including in terms of price.

For working with cameras (including DSLRs and system cameras) with large sensors (>1"), this camera port (factor 0.55x) is not very well suited. The built-in lens reduces the size of the image field by 45%, which is a very good fit for cameras with small sensors (C-mount cameras with up to 0.5"; 8x6 mm), but with larger sensors the results leave much to be desired. We tested a variety of LM DSLR adapters (with magnification lenses) on this camera port, but unfortunately never achieved the image quality we were aiming for. The image was always only sharp in the centre, while towards the edges it became increasingly blurred.

A good alternative to enable cameras with large sensors to be used with this microscope is to use the eyepiece tube. We used a Canon EOS 60D. Adapting the camera to the eyepiece tube was very simple. First, we removed the microscope eyepiece and fitted the TUST30S tube adapter in its place. Then we attached the DSLRCT LM digital adapter to the assembly.

Canon EOS 60D on the eyepiecetube of Nikon SMZ745

The image quality was excellent, with both the centre of the image and the edges being sharp. This method makes it possible to use any choice of camera (full-frame or APS-C sensor).

Blattlaus mit Nikon SMZ745T und Canon EOS 650D

Conclusion:

The Nikon SMZ745 and SMZ745T are very good entry-level stereomicroscopes with long working distance and large zoom range. Due to the non-removable C-mount port with a 0.55x lens, the microscope offers only limited suitability for photographic documentation, as the choice of cameras is very restricted. The more expensive models in the SMZ range (such as the 800/1000/1500) are significantly more flexible in this respect and offer better performance, especially at greater magnifications (>40).
