Our latest venture: Universal adapter range for all Zeiss microscopes with 30 mm internal diameter photo tubes (Interface 60 and Interface P95)

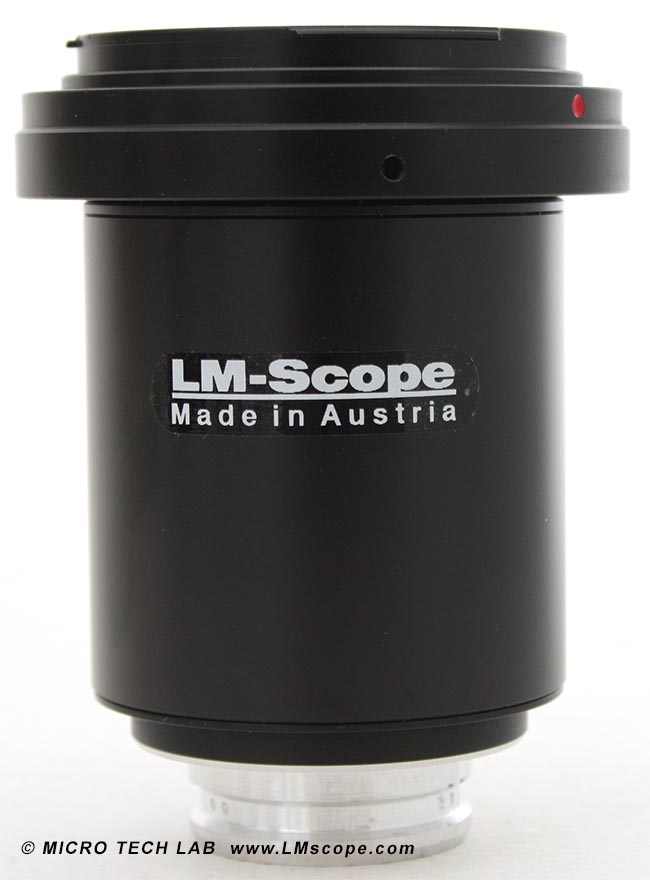

Practical, simple, good – the LM direct image SLR adapter, a custom design for all Zeiss microscopes with 30 mm photo tubes. This product enables us to offer a high-quality adapter solution for connecting DSLR and system cameras to Zeiss microscopes with 30 mm photo tubes. As with all of our products, it is possible to assemble the adapter solution in just a few steps. DSLR cameras are very well suited for use on a microscope and deliver high-quality images at an unbeatable price/performance ratio.

Zeiss microscopes 30mm internal diameter adapter photography

With the new LM direct image SLR adapter series, we have succeeded in developing a solution that requires only one product for all Zeiss microscopes with Interface 60 and Interface P95 (photo tube with 30 mm internal diameter). The adapter is attached directly to the photo tube. As all of our products, the LM direct image SLR adapter has a high-quality, plan achromatic optical system and is very well manufactured. It also features a short, compact design.

Adapter for Zeiss interface 60 and 95

The LM direct image SLR adapter is optimally suited for digital cameras with an APS-C sensor, but can also be used with full frame cameras.

With a full frame camera, the largest possible field of view (100%) can be obtained, while the field of view is approx. 69% with an APS-C sensor camera.

FOV 100%                                       FOV 69%

The LM direct image SLR adapter solution is suitable for almost every conventional DSLR camera. To use the adapter with cameras made by different manufacturers, all you need to do is change the T2 bayonet ring. The LM direct SLR adapter offers the customary LMScope quality at an attractive price!

As an alternative to this special solution, we also offer our LM digital adapters with standardised C-mount connection or eyepiece tube connection (23.2 mm/30 mm). The conventional LM digital adapters offer great flexibility, as both changing to another camera as well as changing to another microscope is possible. The advantage of the LM digital adapters over the custom LM direct image adapter solution is that, in addition to the greater flexibility, they can also be focussed, thus allowing for precise adjustment of the field of view (FOV).

Advantages of LM digital adapters:

Advantages of LM direct SLR adapters:

Compatible with the following Zeiss microscopes:

Interface 60:
Axiolab Axiovert 135
Axioplan 2 Axiovert 135 M
Axioskop 2 MOT Axiovert 200
Axioskop 2 Plus Axiovert 200 für Auflicht-Floureszenz mit "Apo Tome"
Axioskop 2 FS MOT Axiovert 200 M
Axioskop 2 FS Plus Axiovert 200 M für Auflicht-Floureszenz mit "Apo Tome"
Axioskop 40 Axiovert 200 M MAT
Axioskop 40 A Pol Axiovert 200 MAT
Axioskop 40 FL PALM CombiSystem
Axioskop 40 Pol PALM MicroBeam
Axiostar plus PALM MicroTweezers
Axiostar plus FL Stemi 2000 C
Axiotech Stemi 2000 C für KS ELISPOT
Axiotech vario Stemi 2000 CS
Axiovert 100 Stemi SV 6
Axiovert S 100 Stemi SV 11
Axiovert 100 A Stemi SV 11 Apo

Interface P95:

Primo Star
Primo Vert

Please contact us for more information!                                                    05.11.2014



Ordering codeProduct descriptionPricePriceAvailable
DD2XZ30mmLM Direct Imager SLR Adapter with special hard anti-reflection coating, plan achromatic optics for Zeiss microscopes with phototube with an inside diameter of 30 mm (Interface60), with Camera Lens Mount

Data Sheet0
Operating Instructions1
Euro 990,--
US $ 1217.7
DD2XZPrimoLM Direct Imager SLR Adapter with special hard anti-reflection coating, plan achromatic optics for Zeiss Primo Star und Primo Vert with phototube with an inside diameter of 30 mm (Interface P95), with Camera Lens Mount for Canon or Nikon

Data Sheet0
Operating Instructions1
Euro 949,--
US $ 1167.27
For EU (European Union) VAT (IVA, TVA) not included
