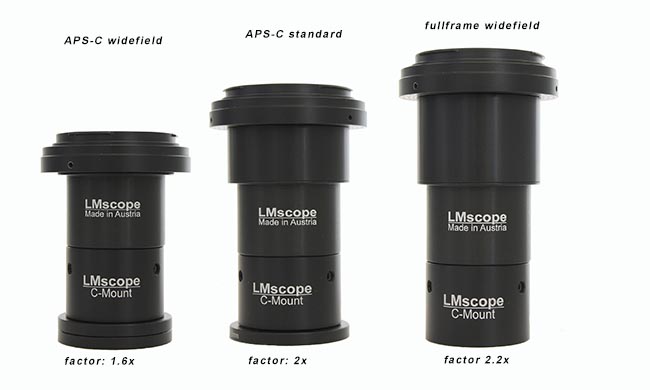

Very simple image field adjustment with our new LMscope "Pro" microscope DSLR adapter

Due to the modular construction of our LM "pro" microscope adapters the image field can very easily be exactly adjusted for cameras with different sensor sizes. The main target is to achieve the largest possible field of view (FOV 100%) without any vignetting. Our LM "pro" adapter is your best choice if you are planing to use cameras with different sensor sizes (APS-C and fullframe) on just one adapter or if you are thinking of changing to a camera with a different sensor size in the future.These adapters can be used on photo tubes as well as on eyepiece tubes.

By using the upgrade modules our adapters can be used very flexible and there is no need in purchasing a new adapter when changing the camerasystem. Nevertheless what configuration is used, the image quality is always high

Our upgrade modules can be purchased separately at any time.




Fullframe_Upgrade: Module for image field adjustment when using an LM digital widefield adapter with fullframe cameras. With this module the magnification factor changes from 1.6x to 2.2x. Please note that all c-mount extenders have to be removed when using this module!

APS_C_Upgrade: Module for image field adjustment when using an LM digital widefield adapter with cameras with APS-C sensor. With this module the magnification factor changes from 1.6x to 2.0x. The image field will be reduced from 100% to 69%. Please note that one of the c-mount extenders have to be removed when using this module!

19.06.2015



Ordering codeProduct descriptionPricePriceAvailable
APS_C_UpgradeUpgrade adapter for Field of View (FOV) adjustment for cameras with APS-C sensor for LM Digital SLR Universal Widefield Adapter

Data Sheet
Euro 99,--
US $ 121.77
CMount_Ext5mmLM C-Mount extension 5mm

Data Sheet
Euro 99,--
US $ 121.77
Fullframe_UpgradeUpgrade adapter for Field of View (FOV) adjustment for cameras with full frame sensor (36x24mm) for LM Digital SLR Universal Widefield Adapter

Data Sheet
Euro 99,--
US $ 121.77
T2_Extender10mmT2 Extender 10mm for field magnification for LM Digital SLR Adapter

Data Sheet
Euro 89,--
US $ 109.47
For EU (European Union) VAT (IVA, TVA) not included

New LM Digital Adapter for:

Nikon D850 / Sony Alpha 7III / Sony Alpha 9 / Nikon D5 / Sony Alpha 7S II / Sony Alpha 7R II / Sony Alpha 7R III / Sony Alpha 7S / Canon EOS 5D Mark IV / Nikon D750 / Canon EOS 6D Mark II / Sony Alpha 6300 / Sony Alpha 6500 / Nikon D500 / Canon EOS 1D X / Nikon D810 / Nikon D4s / Nikon D800 / Nikon D800E / Nikon D4 / Nikon Df / Nikon D610 / Nikon D600 / Canon EOS 6D / Canon EOS 5DS R ( without low-pass filter) / Olympus OM-D E-M1 Mark II / Canon EOS 80D / Canon EOS 5DS / Sony Alpha 77 II / Canon EOS 70D / Nikon D7200 / Canon EOS 200D / Canon EOS 800D / Rebel T7i / Canon EOS 77D / Canon EOS 5D Mark III / Canon EOS 60D / Sony Alpha 7R / Sony Alpha 7 / Nikon DS-Qi2 (Microscope Camera) / Nikon D3x / Olympus OM-D E-M1 /
